Essential Guide Shoe for Lift: 3 Powerful Benefits You Should Know
Guide shoe for lift: 3 Explanations
Guide shoe for lift is a key component for the smooth operation of the elevator car and counterweight along the guide rail.
Essential Component for Elevator Safety and Efficiency
The elevator guide shoe is a critical element in elevator systems, ensuring precise alignment and smooth movement of the car and counterweight along the guide rail. Its primary function is to minimize vibration, reduce noise, and prevent excessive wear on the rail, thereby enhancing passenger comfort and extending the lifespan of the elevator machinery.
Types
-
Fixed Guide Shoes （Elevator Sliding Guide Shoe ）
- Design: Typically made of rigid materials like steel or reinforced nylon, with a U-shaped groove to fit the rail.
- Application: Used in low-speed elevators (≤1.0 m/s) or where precise alignment is paramount.
- Advantages: Simple structure, low maintenance, and cost-effective.
-

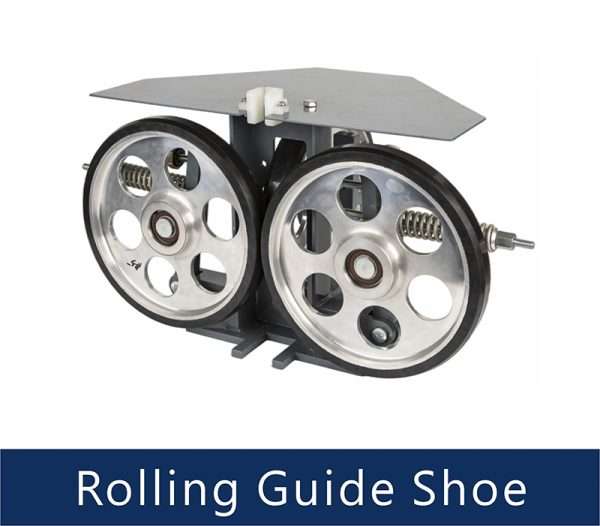

Spring-Loaded Guide Shoes （Elevator Rolling Guide Shoe ）
- Design: Equipped with shock-absorbing springs to compensate for rail irregularities.
- Application: Ideal for medium-speed elevators (1.0–2.5 m/s) in commercial buildings.
- Advantages: Smoother ride, reduced rail wear, and better noise control.
1. Function.
-
Guiding Function: Ensures precise alignment of the car and counterweight with the guide rail, maintaining a consistent gap (typically 0.5-1.0mm) to prevent lateral deviation or sway during operation. This is achieved through its rigid mounting and adjustable lining.
-
Vibration Reduction & Noise Reduction: The shoe lining (made of rubber, nylon, or composite materials) absorbs vibrations generated by movement and reduces friction between the shoe and rail, significantly lowering operational noise.
-
Improve Comfort: By minimizing vibrations and impacts during acceleration, deceleration, and travel, it enhances passenger comfort by ensuring a smooth and stable ride.
-
Safety Guarantee: In emergencies such as sudden braking or loss of control, it works in conjunction with the safety clamp system. Its secure grip on the rail helps arrest unintended movement, ensuring passenger safety.
2. Installation method
The installation should be operated by professionals and follow the elevator manufacturer’s and national standards and specifications.
-
Preparation
- Verify type and specifications match the guide rail used (e.g., T-type guide rail).
- Prepare necessary tools: wrench, hexagon socket, level, torque wrench, etc.
-
Installation
- Firmly install the guide shoe based on the car/counterweight frame.
- Use positioning bolts to pre-position the guide shoe; do not tighten at this stage.
-
Adjustment
- Fit the elevator guide shoe lining to the guide rail.
- Use a feeler gauge to adjust the gap between the lining and the guide rail (typically 0.5~1.0mm).
- Ensure that the verticality and parallelism are within the allowable tolerance range.
-
Finalization
- Tighten the guide shoe mounting bolts according to the specified torque requirements.
- Manually push the car to observe whether the movement is smooth and free from jamming.
3. Maintenance Tips
Regular cleaning:
Clean dust and oil from the contact surface between the elevator guide shoe and the guide rail to prevent carbon deposits from hardening
Check the wear of the shoe lining: Check whether the thickness of the shoe lining is within the safe range
Shoe linings should be replaced in time if they are aged, deformed, or severely worn
Lubrication treatment: Use lubricating oil or grease recommended by the manufacturer (such as graphite grease)
Roller guide shoes do not require lubrication, but the condition of the roller bearings needs to be checked regularly
Fastener inspection
Check all bolts and nuts for signs of looseness. Any looseness can lead to unstable operation, which may result in system malfunction or even serious accidents.
Regular monitoring of track clearance is essential for safety. Use a feeler gauge to carefully measure the gap between the shoe lining and the guide rail. Ensure that this gap remains within the standard range to avoid uneven wear or malfunction.
Timely maintenance of these components is crucial to maintaining smooth elevator operation and preventing unexpected failures that could pose risks to passengers and equipment.
