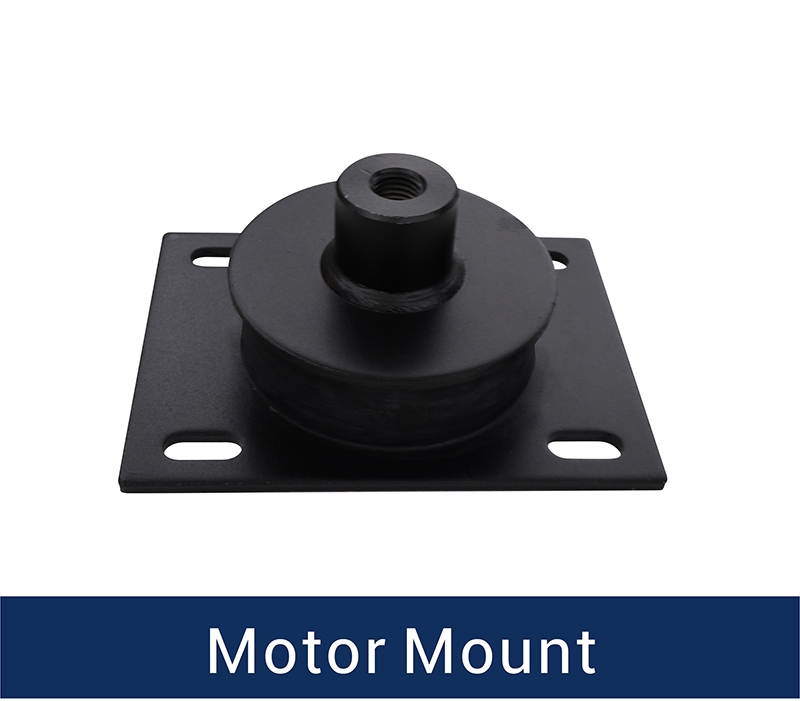

Elevator Motor Mounting F003

Our company specializes in manufacturing high-quality elevator motor mountings. These precision-engineered components are designed to securely and efficiently support elevator motors in various types of elevators. Made from durable materials, our mountings ensure stable motor operation while minimizing vibrations and noise. They feature precise alignment capabilities for optimal performance and easy installation. With strict quality control processes, our products meet international safety standards and have been exported to multiple countries. Whether for passenger elevators or freight elevators, our motor mountings provide reliable support for smooth elevator operation. We offer customizable solutions to meet specific customer requirements

Compare

Add to wishlist

Category: Elevator-Parts Tags: electric motor mounting, electric motor mounting arrangement

Description

Elevator Motor Mounting：THE FUNCTION OF THE ELEVATOR DAMPER PAD

Electric motor mounting positions

The elevator motor mounting damper pads are designed to securely fix the motor in place while absorbing shock and vibrations

SIGNIFICANT SHOCK ABSORPTION EFFECT

During an elevator’s operation, particularly during initiation, halting, and floor parking, vibrations and impacts inevitably arise. The damping pad, with its cutting-edge material and structural design, adeptly absorbs these disturbances, reducing car shake and sway. This innovation contributes to an even smoother and more pleasant passenger experience.

REDUCE NOISE TRANSMISSION

The majority of noise during elevator operation stems from vibrations and friction among mechanical components. The damping pad exhibits an extraordinary ability to curtail noise transmission by absorbing vibration energy. This is crucial for noise-sensitive environments such as hospitals, hotels, and residences, establishing a tranquil riding ambiance for passengers.

EXTEND EQUIPMENT LIFE

In elevators, continuous vibration and impact expedite mechanical wear. By cushioning these forces, damping pads prevent direct collisions and friction among critical components like traction machines, cars, and counterweights. This prolongs their operational life, curtails maintenance and replacement costs, and reduces downtime due to equipment failures.

IMPROVE OPERATIONAL STABILITY

Shock-absorbing pads ensure the elevator car maintains impeccable balance during operation, mitigating deviations caused by vibrations or impact. This stability is essential in high-speed elevators where greater forces are at play. With shock-absorbing pads in place, elevators experience stability throughout starting, accelerating, decelerating, and parking, significantly enhancing passenger safety and comfort.

Elevator Motor Mount

Ginotek Elevator Cabinet Damping Pad YX-JD05--

Elevator Motor Mounting Rubber Structure Design and Manufacturing

Elevator Motor Mounting systems are critical components responsible for supporting the elevator drive motor while controlling vibration and noise. As elevator motors operate continuously under high loads, rubber components within the mounting system play a vital role in protecting mechanical structures and improving passenger comfort. Professional rubber structure design and precision manufacturing are essential for long-term performance and safety.

Functional Role of Rubber in Motor Mounting

In an Elevator Motor Mounting assembly, rubber elements are primarily used to isolate vibration, absorb shock, and reduce noise transmission. Motor rotation and braking generate dynamic forces that can cause structural fatigue if not properly controlled. Rubber mountings effectively decouple the motor from the building structure, minimizing vibration transfer and ensuring smooth elevator operation.

These rubber components must maintain elasticity under constant compression while resisting fatigue, creep, and environmental aging.

Rubber Material Selection

Material selection is the foundation of reliable motor mounting performance. Commonly used materials include EPDM rubber and natural rubber blends, which offer excellent resilience, vibration damping, and aging resistance. For applications requiring oil resistance or higher temperature tolerance, specially formulated rubber compounds can be applied.

Each compound is engineered to achieve a precise balance between hardness and elasticity, ensuring effective vibration isolation without compromising load-bearing capacity.

Structural Design Optimization

Structural design directly affects the effectiveness of Elevator Motor Mounting rubber components. Engineers optimize thickness, shape, and internal reinforcement structures to control deformation under dynamic loads. Proper load distribution prevents localized stress concentration and extends service life.

Groove patterns, bonded metal inserts, and layered rubber structures are commonly used to enhance stability and installation accuracy. Advanced simulation tools are often applied during the design stage to analyze vibration behavior and compression performance before mass production.

Manufacturing Process and Quality Control

Rubber components for motor mountings are typically produced using compression molding or injection molding processes. Precise control of molding temperature, pressure, and curing time ensures consistent physical properties and dimensional accuracy.

After molding, each product undergoes trimming, surface finishing, and strict quality inspections. Testing includes hardness measurement, compression set evaluation, and vibration performance verification to meet international elevator standards.

Conclusion

High-quality rubber structure design and precision manufacturing are essential to Elevator Motor Mounting performance. By combining optimized material selection, advanced structural engineering, and strict quality control, elevator parts manufacturers can deliver durable, low-noise, and vibration-resistant mounting solutions for global elevator systems.
