Vibration Mounts Rubber: Innovative R&D Science B086
Engineering Indestructible Rubber-to-Metal Bonds
Vibration Mounts Rubber. In industrial engineering, rubber vibration mounts serve as the interface between vibrating machinery and rigid structures. High-performance mounts combine elastic rubber materials such as NR, EPDM, or NBR with reinforced metal components to achieve effective vibration isolation and structural stability.
The rubber provides vibration damping, noise reduction, and shock absorption, while the metal components ensure load-bearing strength and installation accuracy.
Through advanced vulcanization bonding technology, rubber and metal form a durable chemical bond that resists delamination under continuous vibration, temperature changes, and harsh industrial environments.
Why Bonding Quality Defines Vibration Mounts Rubber Reliability
A weak molecular bond leads to catastrophic component failure. In industrial applications, premature degradation generally stems from adhesive failure, where the rubber peels cleanly away from the metal due to poor surface preparation. Alternatively, cohesive failure occurs when the internal rubber tears due to incorrect vulcanization curves.
For industrial-grade Vibration Mounts Rubber, the absolute gold standard of quality is "R-mode failure." This means the elastomer itself will tear before the adhesive interface yields, proving a 100% reliable molecular bond. This exact benchmark is where Ginotek's specialized R&D department excels.
Ginotek R&D: Innovating Technology for Vibration Mounts Rubber
Operating a state-of-the-art 60,000 m² production base under strict ISO 9001 and ISO 14001 guidelines, Ginotek has established a dedicated R&D laboratory focused purely on solving bonding delamination issues. Our engineering team prioritizes two foundational pillars:
Advanced Metal Surface Treatment
True adhesion begins with meticulous surface preparation. The Ginotek R&D team has engineered a standardized three-step precision methodology:
- Ultrasonic Degreasing: Completely removes industrial oils, lubricants, and drawing compounds to prevent surface contamination.
- Micro-Blasting & Phosphating: Creates a highly uniform, porous micro-texture on the metal surface to optimize mechanical interlocking.

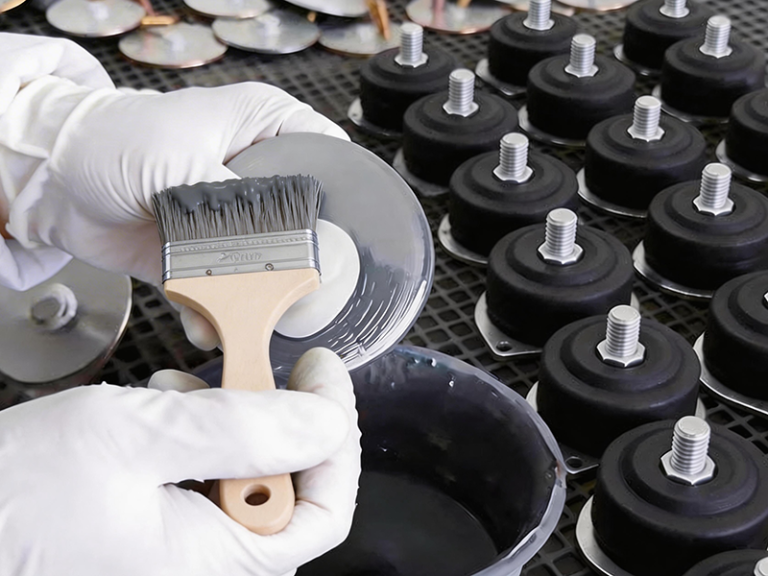

- Pre-Bond Chemical Activation: Applies an advanced primer coating that maximizes chemical cross-linking during elastomer curing.
This meticulous preparation achieves a 99.9% bonding consistency across complex geometric designs, including cylindrical, conical, and heavy plate-style mounts.
Tailored Vulcanization Curing Curves
The performance of Vibration Mounts Rubber requires matching the precise durometer (30 to 80 Shore A) to the operational frequency of the machine. Our lab has formulated over 12 custom compounds, including high-damping Natural Rubber and oil-resistant NBR. Cured at 150°C to 160°C under 8 to 12 MPa of computer-controlled pressure, our Vibration Mounts Rubber resists dynamic fatigue past 10 million cycles.
Real Case: Heavy Excavator Engine Mount Overhaul
The Engineering Challenge
A prominent construction machinery manufacturer experienced repeated field failures on their 30-ton excavator line. The standard engine mounts were delaminating within 2 to 3 months of heavy operation. The intense combination of high-amplitude low-frequency engine vibration, sudden hydraulic shock loads during digging, and engine bay temperatures peaking at 85°C caused the rubber to tear cleanly away from the steel support brackets, resulting in severe cabin resonance and radiator alignment damage.
The Ginotek R&D Intervention
Ginotek's R&D laboratory analyzed the failed components and engineered a customized heavy-duty Vibration Mounts Rubber solution. We replaced the generic natural rubber with a proprietary high-tensile, thermal-stabilized Natural Rubber compound (70 Shore A).
Furthermore, our team upgraded the metal backing to a heavy carbon-steel plate processed with our specialized zinc-phosphate activation coating, increasing the adhesive shear strength tolerance by 150%.
The Measurable Results
Extended Operational Lifespan: The replacement Vibration Mounts Rubber achieved a continuous service life exceeding 24 months under harsh quarry conditions.
- Zero Interface Delamination: Mid-term physical inspections showed 100% bond integrity with zero signs of micro-cracking at the rubber-metal joint.
- Economic Impact: The manufacturer experienced an 85% drop in warranty claims related to engine mounting brackets.
Conclusion: Trust the Bonding Experts
Rubber-to-metal bonding technology is the undisputed backbone of reliable industrial isolation. With Ginotek's Vibration Mounts Rubber solutions, you are investing in a component engineered to eliminate downtime, protect your structural assets, and improve operator safety. Contact our engineering team today to customize your next high-durability damping solution.
