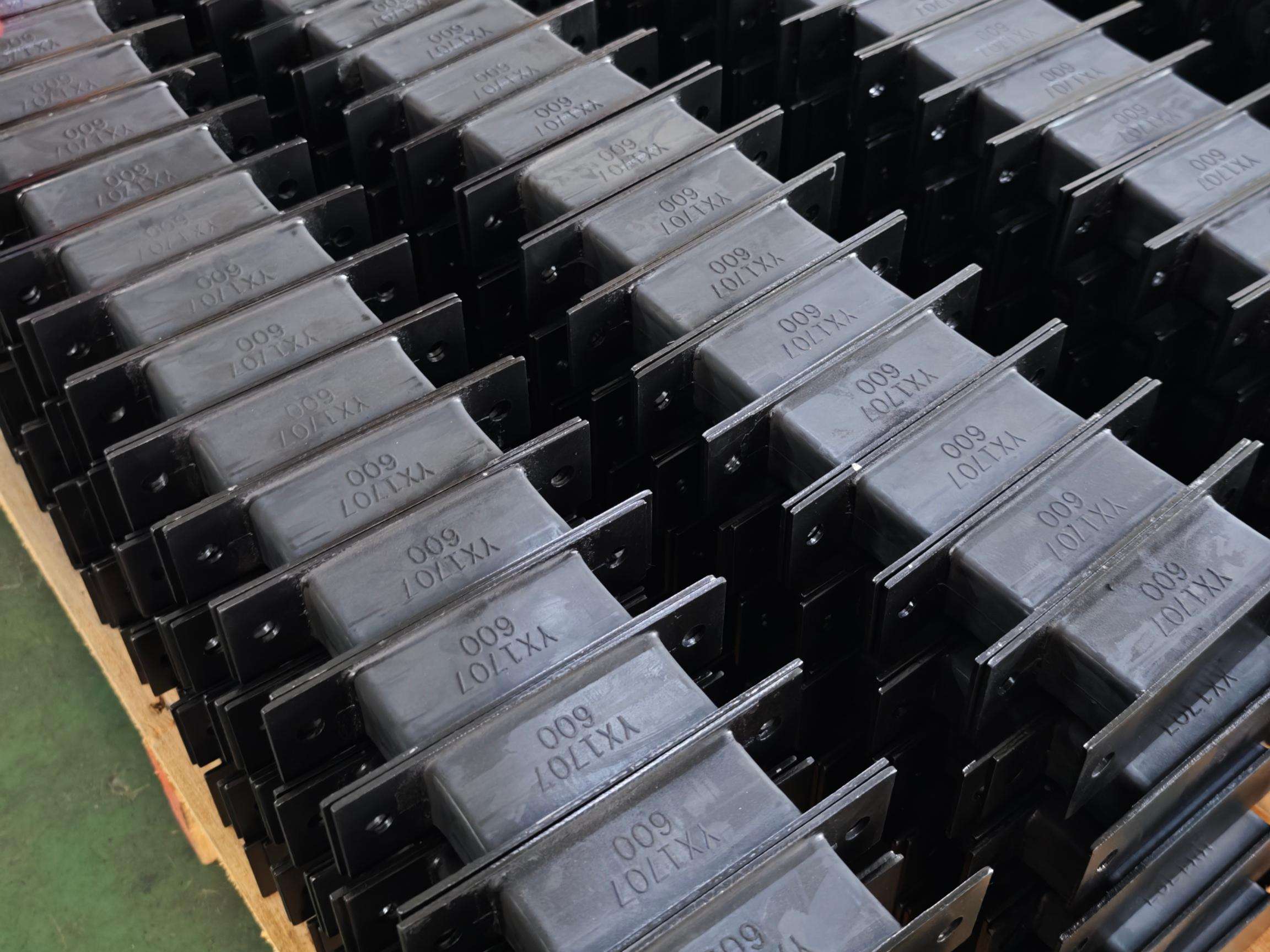

Engine Support Mount Reliability: The Ultimate Guide to Understanding Compression Set and Creep for Industrial Engineering B030
Engine Support Mount components are the silent workhorses of industrial and automotive engineering. Their primary role is to provide effective vibration isolation, protecting the structural integrity of the machine while reducing noise. However, the long-term effectiveness of an Engine Support Mount is not just determined by its initial stiffness, but by how its material behaves over time under constant stress. For engineers, two phenomena are critical: Compression Set and Creep.
The Fundamental Role of an Engine Support Mount
In any high-performance system, an Engine Mounting serves as the interface between the vibrating power unit and the chassis. By utilizing advanced elastomer performance, these mounts absorb kinetic energy. However, because rubber is a viscoelastic material, it does not behave like a perfect spring. Over months and years of service, the Engine Support Mounting will undergo physical changes that can compromise its alignment and damping capabilities.
What is Compression Set in Engine Support Mounts?
A compression set refers to the permanent deformation remaining after a material has been subjected to a compressive force for a specific period and then released. For an Engine Mounting, a high compression set is a “red flag.”
If the rubber in an Engine Mounting fails to return to its original shape, the mount loses its “pre-load” capability. This leads to increased clearances, potential metal-to-metal contact, and a significant drop in vibration isolation efficiency. Engineers must prioritize materials with low compression set values to ensure the Engine Support Mounting maintains its geometry throughout its service life.
What is Creep in Engine Support Mounts?
While a compression set is measured after the load is removed, creep (or cold flow) is the tendency of a solid material to slowly deform or permanently deform under the influence of persistent mechanical stresses. In a typical Engine Mounting application, the engine’s weight is a constant static load.
Creep causes the Engine Mounting to gradually lose height. As the mount “settles,” the alignment of connected components—such as driveshafts or exhaust systems—can be thrown out of tolerance. Excessive creep in an Engine Support Mount often leads to increased secondary vibrations and premature failure of surrounding components.
Factors Influencing Deformation
Several critical variables impact how an Engine Mounting handles mechanical stresses and maintains long-term structural integrity:
- Temperature: Excessive heat accelerates the chemical breakdown of polymer chains. An Engine Support Mount operating near a hot engine block becomes more susceptible to both creep and compression set, leading to premature hardening and loss of its essential damping properties.
- Material Composition: While natural rubber offers superior vibration isolation, it may exhibit different creep profiles than synthetic blends. Choosing the right elastomer, such as EPDM or NBR, is vital for ensuring the mount remains compatible with specific environmental exposures like oil or ozone.
- Load Distribution: Overloading an Engine Mounting beyond its rated capacity exponentially increases the rate of permanent deformation. Proper weight distribution ensures that the internal elastomer performance is not compromised, preventing the mount from bottoming out or causing misalignment.
- Frequency and Amplitude: Continuous exposure to high-frequency vibrations can induce internal friction and localized heating within the rubber. This thermal buildup further weakens the material’s molecular bonds, making precise selection based on the specific dynamic load of the machinery a proven necessity for durability.
Engineering Solutions and Material Selection
To combat these issues, selecting a high-quality Engine Support Mount is essential. Ginotek utilizes precision-engineered formulations designed to minimize molecular slippage. By optimizing the vulcanization process, a Ginotek Engine Support Mount achieves a superior balance between elasticity and long-term dimensional stability.
When specifying an Engine Support Mount, engineers should demand technical data on:
- Static vs. Dynamic stiffness over time.
- The material’s “Life Expectancy Curve” under specific temperature gradients.
- Resistance to oil and ozone, which can exacerbate surface cracking and speed up creep.
Conclusion: Why Stability Matters
An Engine Mount is more than just a piece of rubber; it is a precision-engineered component vital for equipment longevity. By understanding and accounting for compression set and creep, engineers can move beyond reactive maintenance to proactive system design.
Investing in a premium Engine Support Mount ensures that your machinery remains stable, quiet, and efficient for years to come. Whether in manufacturing, automotive, or heavy power generation, the right Engine Support Mount is the foundation of operational excellence.
