Ginotek Elevator Roller
Corrosion-proof Heavy Metal Roller With Rubber
Oil Resistant Rubber Metal Rollers With Bearings
2000 Hours Testing
Home ⇒ Product ⇒ Elevator Parts ⇒ Elevator Roller

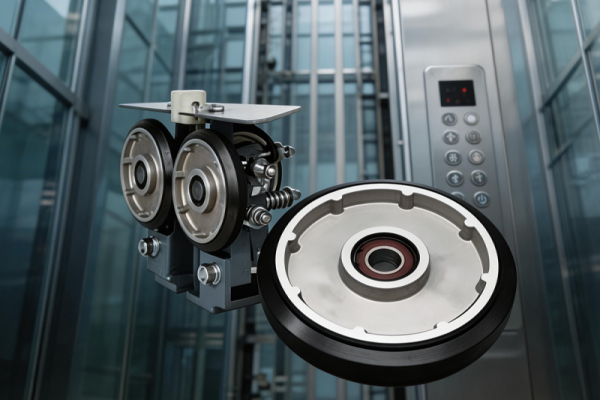

Elevator Roller: A Core Component for Smooth and Reliable Elevator Systems
In modern elevator systems, smooth movement and operational stability are essential for safety and passenger comfort. Among the many mechanical components involved, the Elevator Roller plays a critical role in guiding motion, reducing friction, and ensuring long-term reliability. For global elevator manufacturers, maintenance companies, and distributors, selecting high-quality rollers is a key factor in achieving efficient and quiet elevator operation.
What Is an Elevator Roller?
An elevator roller is a precision-engineered component used in various elevator mechanisms, including door systems, guide assemblies, and moving structures. Its primary function is to support and guide moving parts along designated tracks while minimizing resistance and vibration. Because elevators operate under frequent and repetitive cycles, the quality of each elevator roller directly affects system performance and maintenance requirements.
Well-designed rollers ensure consistent alignment and smooth travel, helping elevator systems operate safely over extended periods.
Materials and Structural Design
High-performance elevator rollers are typically manufactured from durable materials such as reinforced nylon, polyurethane, rubber-coated steel, or engineered plastics. These materials are selected for their wear resistance, elasticity, and ability to absorb vibration. Internal bearings are often made from high-grade steel to ensure smooth rotation and stable load distribution.
Advanced manufacturing techniques, including CNC machining and precision molding, guarantee uniform dimensions and excellent surface finish. Proper bonding between materials and accurate bearing installation are essential to achieving consistent rolling performance and long service life.
Key Benefits of Using Quality Elevator Rollers
Using a premium Elevator Roller provides several important advantages in elevator systems:
-
Smooth and stable movement, reducing friction during operation
-
Noise reduction, enhancing passenger comfort
-
Improved alignment, preventing abnormal wear or jamming
-
Extended service life, lowering maintenance and replacement costs
These benefits are especially valuable in high-rise residential buildings, commercial complexes, hotels, and hospitals where elevators operate continuously and reliability is critical.
Why Choose Ginotek Elevator Wheels?
Tested. Trusted. Global.
Ginotek Elevator Roller Catalog
Ginotek Elevator Roller Materials
Rubber: polymer rubber ;
Metal Wheel hub can be:
A3 = Carbon Structural Steel A3 Roller, 6061= Aluminum Alloy 6061 Roller, ADC12 = Aluminum Alloy ADC12 Roller

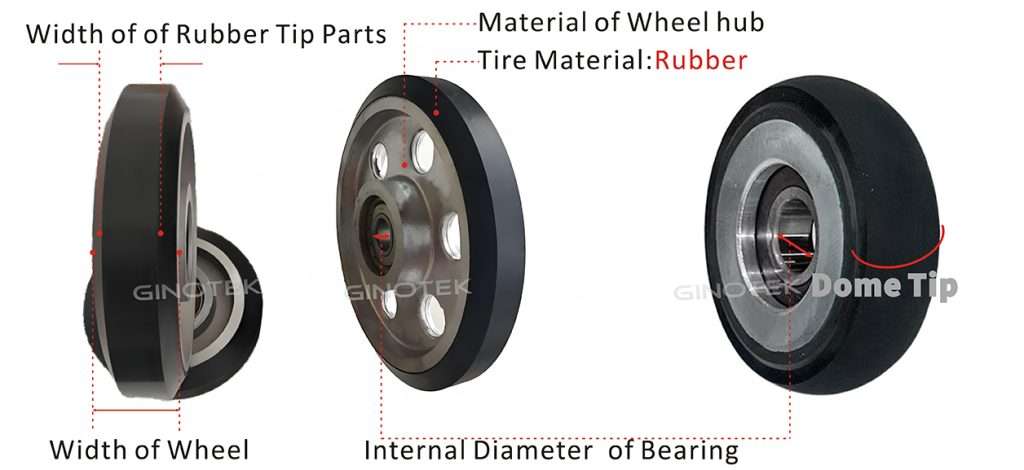

| Item | External Diameter (mm) | Internal Diameter (mm) | Width (mm) | Material | Speed (m/s) | Working Width (mm) | ||
| of Whole Roller | of Bearing | of Wheel | of Rubber Tip Parts | of Wheel hub | Car Speed | CWT | of Rail | |
| YX-GL50-01 | Ø50 | 15 | 18 | 15 | A3 | ≤0.63 | ≤1.75 | 8/9/10/16 |
| YX-GL50-02 | 8 | |||||||
| YX-GL50-03 | 12 | 18 | 15 | |||||
| YX-GL50-04 | 8 | |||||||
| YX-GL58-01 | Ø58 | 12 | 23 | 13 | 6061 | ≤0.63 | ≤1.75 | |
| YX-GL58-02 | 7 | |||||||
| YX-GL70-01 | Ø70 | 20 | 25 | 20 | A3 | ≤1.75 | ≤3.0 | |
| YX-GL70-02 | 17 | 20 | ||||||
| YX-GL70-03 | 17 | 6 | ||||||
| YX-GL76-01 | Ø76 | 17 | 21.5 | 20(Dome Tip) | 6061 | ≤1.75 | ≤3.5 | |
| YX-GL80-01 | Ø80 | 15 | 28 | 14 | ADC12 | ≤2 | ≤3.5 | |
| YX-GL80-02 | 8 | |||||||
| YX-GL90-01 | Ø90 | 15 | 25 | 12 | 6061 | ≤2.0 | ≤3.5 | |
| YX-GL90-02 | 5 | |||||||
| YX-GL100-01A | Ø100 | 15 | 28 | 8 | ADC12 | ≤2.5 | ≤4.0 | |
| YX-GL100-01B | 14 | |||||||
| YX-GL105-01 | Ø105 | 15 | 22 | 8 | ADC12 | ≤2.5 | ≤4.0 | |
| YX-GL125-01 | Ø125 | 20 | 22 | 12 | ADC12 | ≤3.0 | ≤6.0 | |
| YX-GL125-02 | 8 | |||||||
| YX-GL125-03 | 17 | 22 | 12 | |||||
| YX-GL125-04 | 8 | |||||||
| YX-GL150-01 | Ø150 | 17 | 28 | 13 | ADC12 | ≤4.5 | ≤7.0 | |
| YX-GL160-01 | Ø160 | 20 | 30 | 12 | ADC12 | ≤4.5 | ≤7.0 | |
| YX-GL160-02 | 17 | 30 | 12.5 | |||||
| YX-GL200-01 | Ø200 | 20 | 30 | 12 | 6061/ADC12/ | ≤6.0 | ≤10.0 | 16/19/28.6/31.75 |
| YX-GL200-02 | 20 | 32 | 21(Dome Tip) | ADC12 | 16/19/28.6/31.75 | |||
| YX-GL250-01 | Ø250 | 20 | 30 | 15 | 6061/ADC12 | ≤8.0 | ≤12.0 | 16/19/28.6/31.75 |
| YX-GL260-01 | Ø260 | 20 | 32 | 20.5(Dome Tip) | ADC12 | ≤8.0 | ≤12.0 | 16/19/28.6/31.75 |
| YX-GL300-01 | Ø300 | 25 | 38 | 20 | 6061/ADC12 | ≤10.0 | ≤12.0 | 16/19/28.6/31.75 |
| YX-GL100-02 | Ø100 | 25 | 30 | 30 | A3 | / | 1.75 | / |
| YX-GL200-03 | Ø200 | 30 | 40 | 40 | A3 | / | 1.75 | / |
