Rubber Bushing with Hole: As a core elastic vibration isolation component, the perforated rubber bushing relies entirely on the internal diameter (ID) of its hollow centre to achieve a balance between load-bearing capacity and vibration damping. At Ginotek, we have quantified the direct correlation between inner diameter, wall thickness, load rating and impact damping efficiency. This guide explains the key mechanical principles underlying centre-hole design and provides Rubber Bushing with Hole bespoke sizing solutions for purchasers of automotive, construction machinery and AGV equipment worldwide.
Basic Mechanical Principles of the Central Hole

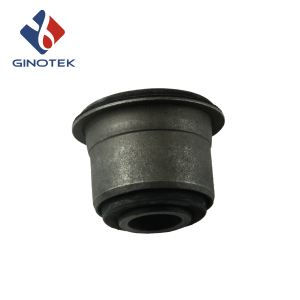

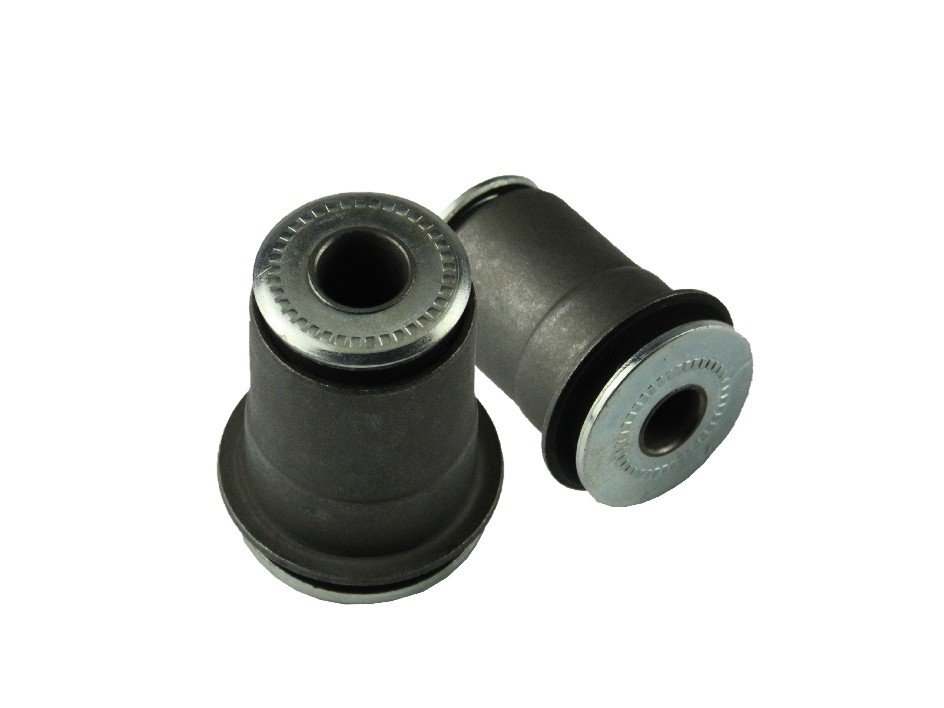

A standard Rubber Bushing with Hole consists of an inner metal sleeve (defining the ID), an outer rubber elastomer layer, and an optional outer steel housing. When bearing radial, axial, or torsional loads, the rubber wall between the ID and the outer diameter (OD) undergoes compression and shear to convert impact vibration energy into internal heat for dissipation.
With a fixed OD and overall length, adjusting the ID changes the rubber’s deformable volume—the fundamental factor governing load limits and shock absorption softness:
Larger ID (Thinner Wall): Lowers overall stiffness, yielding softer shock absorption but a smaller maximum load capacity.
Smaller ID (Thicker Wall): Heightens stiffness, resulting in stronger load-bearing capacity but weaker low-frequency vibration isolation.
How a Larger Inner Diameter Impacts Performance
Shock Absorption and Vibration Isolation Advantages

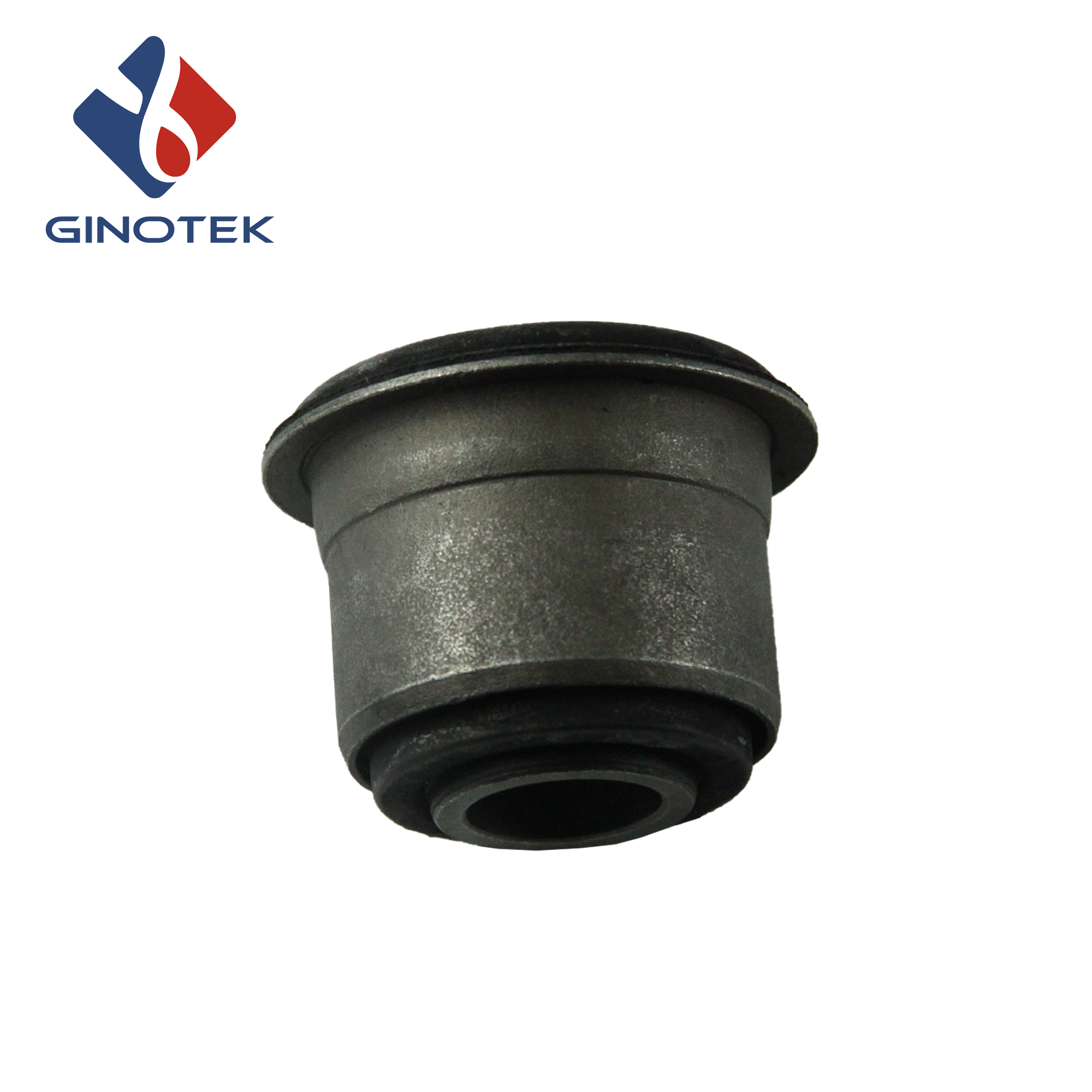

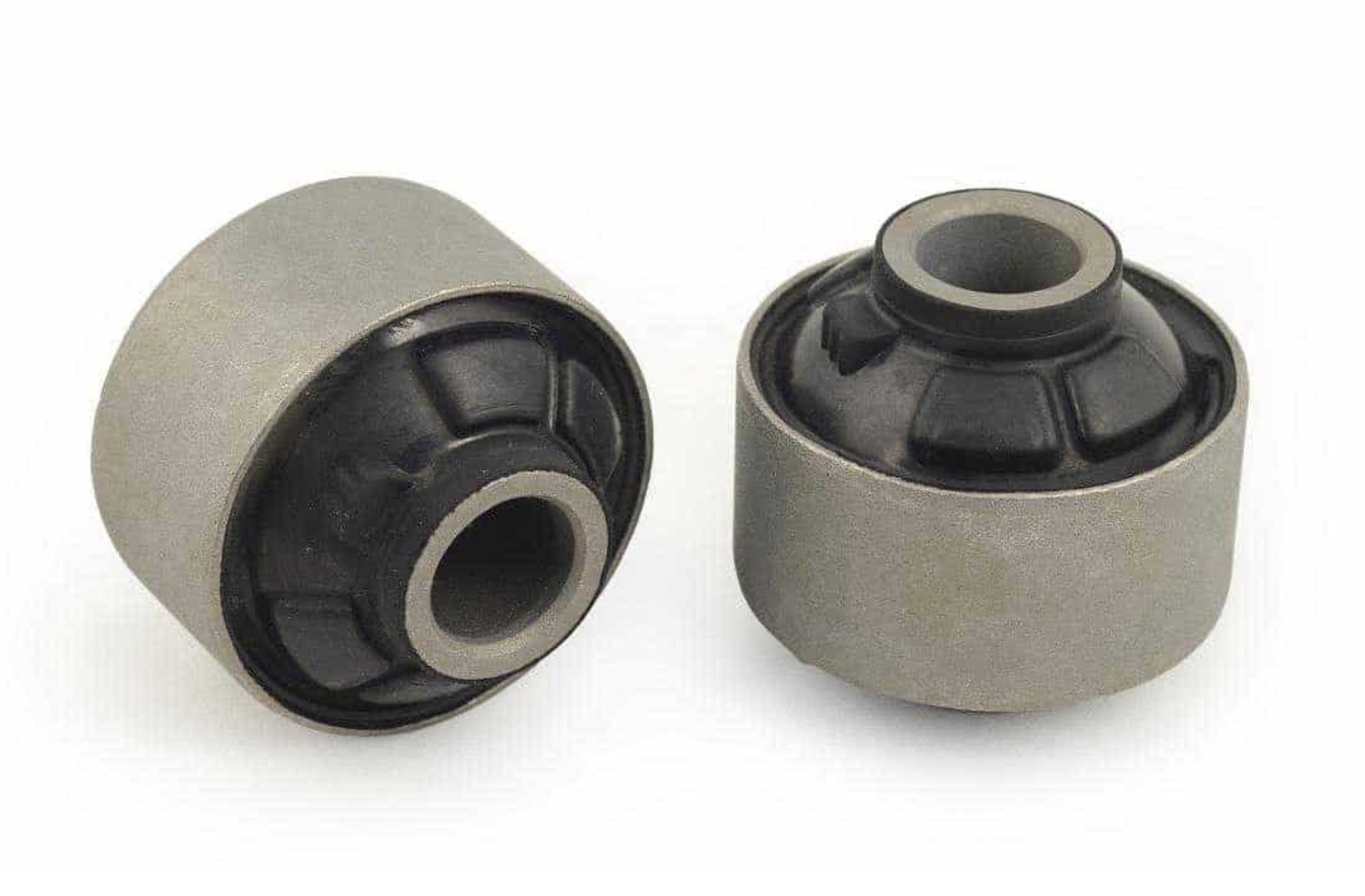

Expanding the central hole ID of a Rubber Bushing with Hole reduces the rubber wall thickness, allowing larger elastic deformation under small loads. This delivers superior soft damping performance by effectively filtering low-frequency idle vibration from motors, compressors, and vehicle suspensions. It eliminates metal clanking noise during minor jolts, making it ideal for precision equipment requiring flexible joint movement like AGV wheel mounts and automotive control arms.
Drawbacks of an Over-Sized ID
Reduced Load Capacity
When the Rubber Bushing with Hole ID increases, radial stiffness drops non-linearly. A bushing with a 30% larger ID can lose over 40% of its rated radial load, making it prone to permanent deformation.
Excessive Radial Deflection
An oversized central hole creates excessive shaft clearance, leading to loose assemblies, abnormal swing, and accelerated rubber fatigue cracking.
Shorter Service Life
Repeated large shear deformations speed up rubber aging and cause debonding between the rubber and the inner metal sleeve.
How a Smaller Inner Diameter Changes Load and Damping
Core Strength and Load-Bearing Benefits
Shrinking the central hole ID of a Rubber Bushing with Hole thickens the rubber wall, boosting multi-directional stiffness and load ratings. This configuration yields higher radial, axial, and torsional load limits, making it suitable for heavy-duty impact environments like truck leaf springs and excavator joint mounts. Ginotek’s heavy-duty small-ID designs (wall thickness 8–15mm) achieve a static radial load capacity up to 35,000N per unit, passing 1 million dynamic fatigue cycle tests without deformation.
Damping Limitations of a Small ID
Thick rubber walls create rigid stiffness, weakening shock absorption. This results in poor isolation of low-frequency vibrations and pronounced resonant noise at idle speeds. It also yields insufficient flexibility for suspension swing, resulting in stiff, bumpy operation and requiring higher press-fit installation forces. Rubber Bushing with Hole.
Industry Sizing Matching Guide
We summarize standardized central Rubber Bushing with Hole ID design rules for mainstream applications to help buyers quickly confirm correct parameters during customization:
- Automotive Light Suspensions: Require a balanced Rubber Bushing with Hole design featuring a medium central hole (wall thickness 4–7mm). Ginotek utilizes Shore A 60–65 NR rubber to optimize dual stiffness for smooth road damping and stable cornering support.
- Heavy-Duty Commercial Vehicles: Demands ultra-high load resistance. We recommend a small central hole (wall thickness ≧ 10mm) using a thick-wall vulcanized rubber structure with a reinforced bonding layer to prevent metal-rubber separation under extreme torsion.
- AGVs, Motors, and HVAC Systems: Prioritizes low noise and soft vibration isolation. A large central hole (wall thickness 2–5mm) paired with custom EPDM or NBR compounds ensures long-term resistance to UV and oils.
Conclusion
When purchasing a Rubber Bushing with Hole, please select a manufacturer (such as Ginotek) with specialist structural design capabilities. Please send your equipment load data, shaft diameter, and dimensional requirements to our engineering team, and we will provide a bespoke solution for optimising the central bore, including a performance test report.
