Rubber Bushing Types: Critical Optimizing High-Damping Solutions for Rail Transit Systems B121
Rubber Bushing Types: Wheel-rail friction, impacts during sharp bends, and frequent acceleration generate severe multi-frequency vibrations and jarring rolling noise in urban metro systems, high-speed trains, and trams. In the absence of specialist vibration-isolation components, sustained vibrations can accelerate track wear, cause metal fatigue in bogies, and generate intense noise that disturbs passengers. Rubber Bushing Types.
As a specialist manufacturer of rubber-to-metal bonded isolation components, our R&D team has significantly improved the loss factor by optimising chemical formulations and vulcanisation processes, thereby reducing noise levels inside the carriage.
Performance Standards for Rail Transit Components
Unlike general industrial hardware, transit-grade Rubber Bushing Types must withstand extreme cyclic loads, wide temperature fluctuations, and strict fire safety standards like EN 45545-2. They require a high damping coefficient for effective energy dissipation, a low dynamic-to-static stiffness ratio to avoid resonance, and an ultra-long fatigue life exceeding 30 million cycles.
Ginotek independently develops high-damping NR/EPDM blended formulas specifically to fulfill these rules across different structural shapes.
Three Main High-Damping Structure Variations
To address diverse structural needs, Ginotek manufactures five distinct Rubber Bushing Types designed for targeted installation zones:

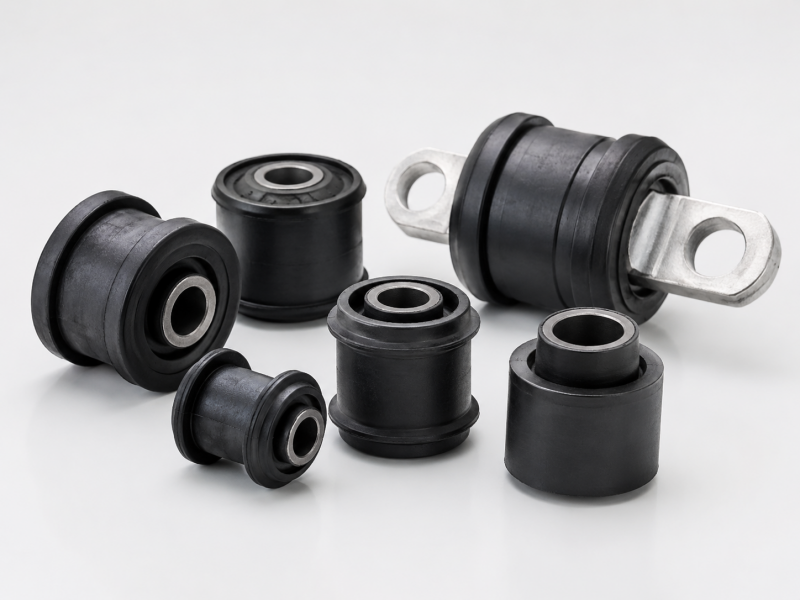

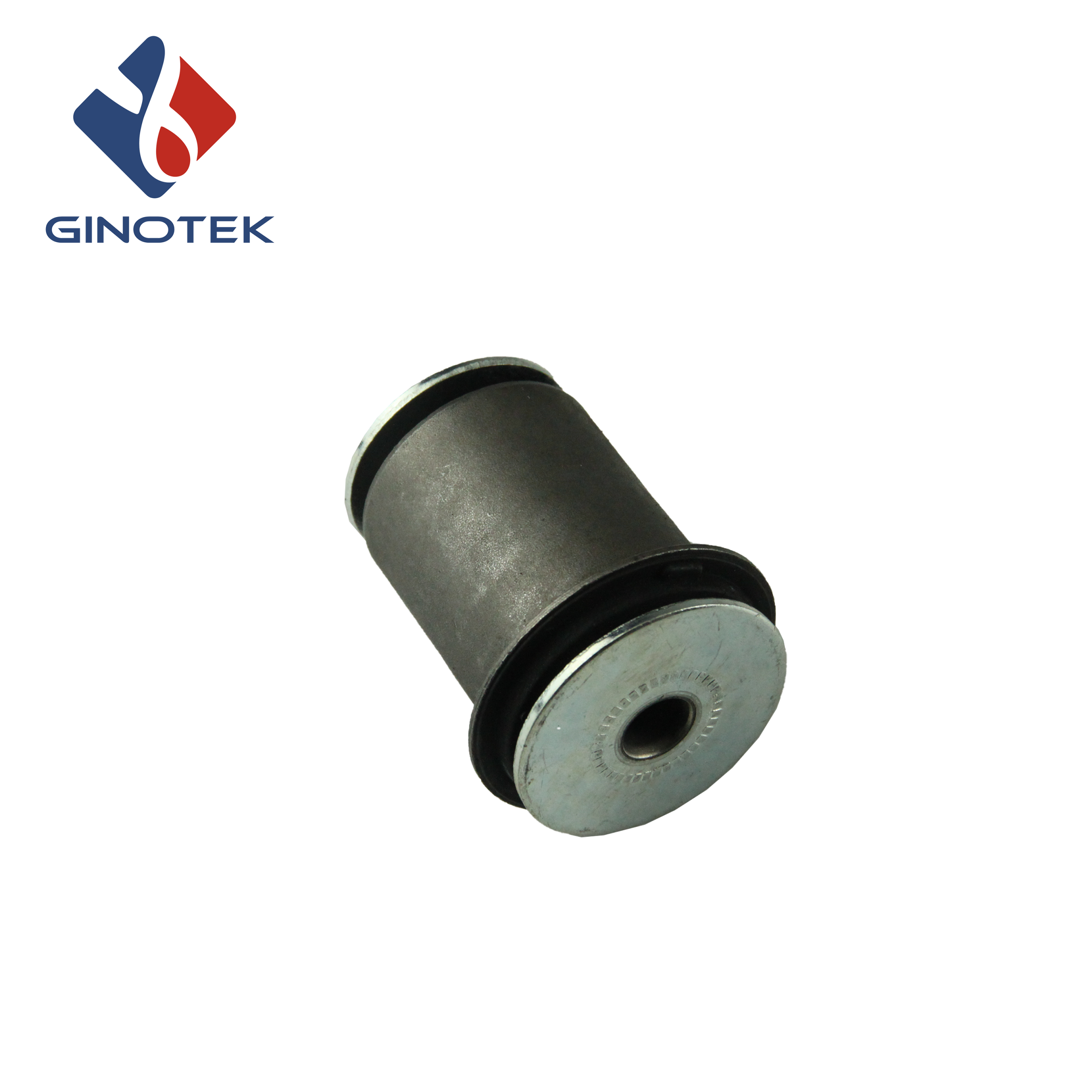

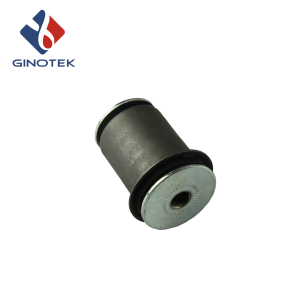

Type 1: Cylindrical Straight Tube Bushings
The inner metal sleeve features a through-hole structure designed to accommodate pins or bolts, with uniform and consistent dimensions; the intermediate rubber layer consists of a ring-shaped rubber wall of uniform thickness, with consistent wall thickness at both the top and bottom to provide stable elastic support; The outer steel sleeve (fitted to certain models) encases the assembly in a metal jacket to further enhance overall rigidity and structural strength; the entire unit is manufactured using a one-piece vulcanisation process, with no seams, no notches and no external flanges. It is widely used in axle box guide arms for metros and low-speed trams.

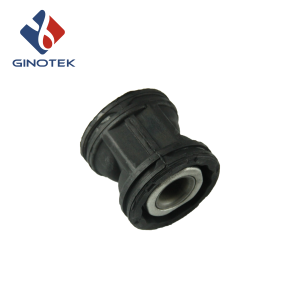

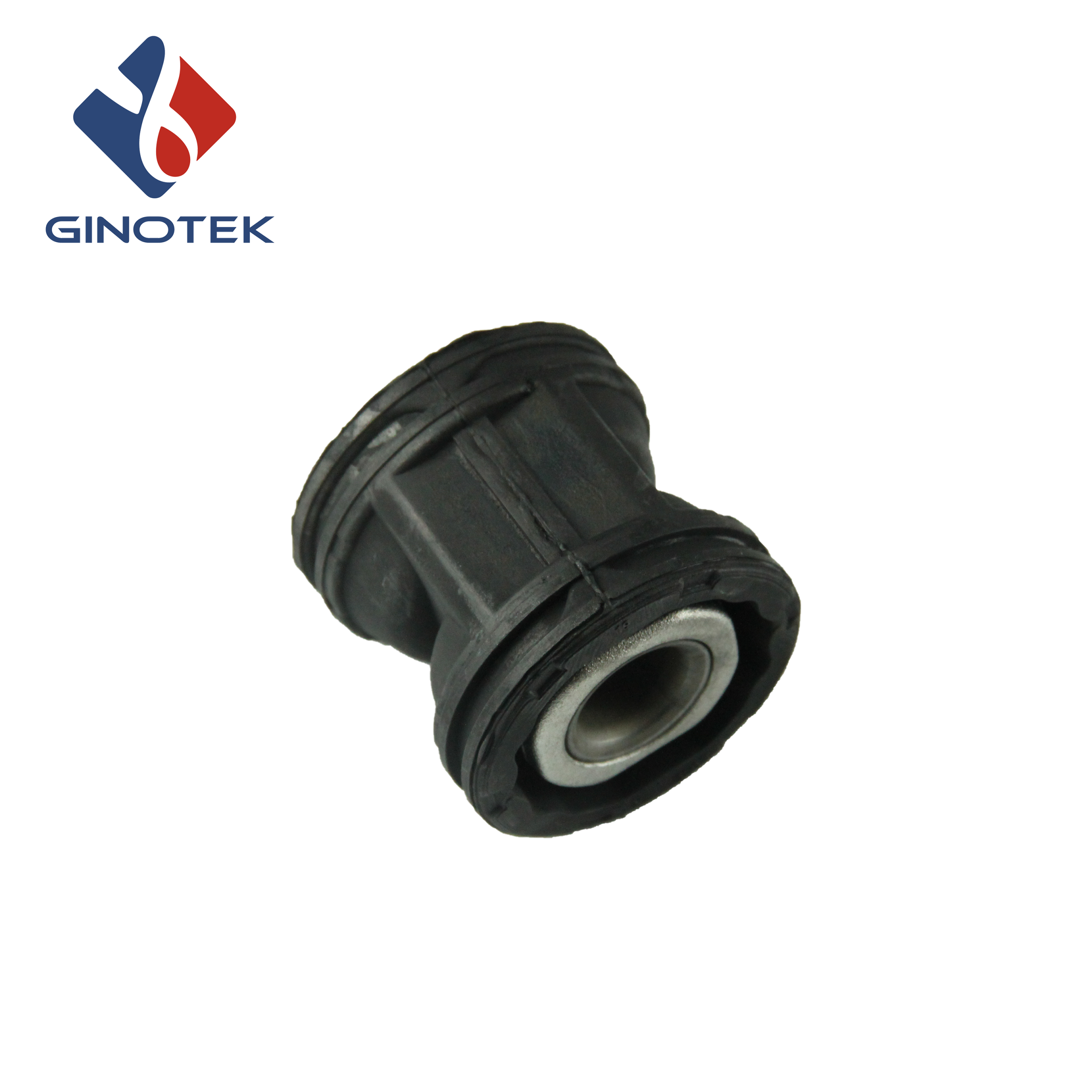

Type 2: Hydraulic Damping Bushings
The inner metal sleeve is located in the central through-hole and mates with the pin, serving as the installation reference for the entire bushing assembly. The main rubber element is integrally vulcanised with the inner and outer metal parts, providing elastic support and vibration damping. Inside, a symmetrical sealed fluid chamber forms two cavities filled with ethylene glycol damping fluid to enhance damping performance. A throttling inertial flow channel connects the chambers and generates hydraulic damping. The outer metal casing seals the structure and prevents fluid leakage, while rubber buffer blocks protect against excessive deformation or tearing under extreme impact. The system effectively absorbs ultra-low-frequency vibrations below 10 Hz during train start-up and braking, reducing cabin resonance and noise.

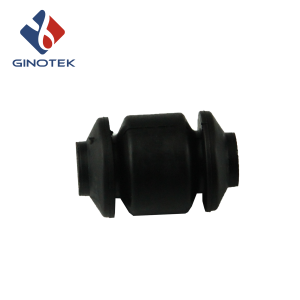

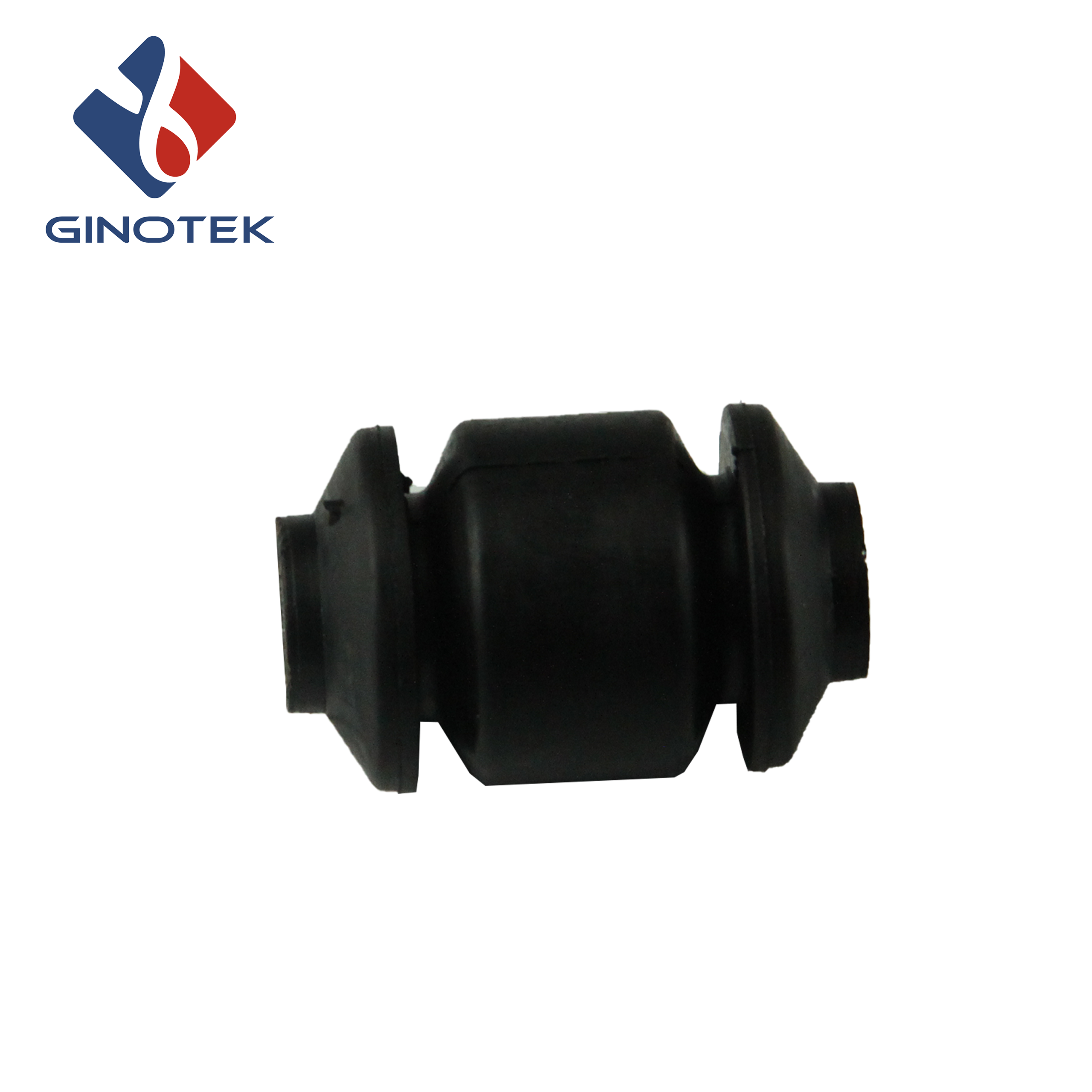

Type 3: Split Flange Bushings
The split-type design features a rubber outer ring with a split-open design, allowing it to be snapped directly onto the pin without the need to remove the shaft or dismantle large brackets; The flanged design features a flange edge moulded as a single piece on the outer side of the bushing, which serves to provide axial restraint, prevent axial movement and ensure precise positioning; the internal structure comprises a centrally positioned metal inner sleeve (with a central through-hole), with the rubber and metal moulded as a single unit through a vulcanisation process, thereby achieving effective vibration damping and noise reduction. The flange limit structure avoids excessive lateral displacement, effectively reducing metal collision noise during sharp bumps. Rubber Bushing Types.
Application Matching Matrix
Choosing the wrong Rubber Bushing Types hardware can result in premature component failure. Ginotek engineers recommend matching components based on specific Rubber Bushing Types vibration frequencies and load characteristics:
- High-Frequency Rolling Noise (Metros): Recommended Type: Standard cylindrical bushings using medium-high damping EPDM to balance cost and isolation.
- Low-Frequency Body Resonance (High-Speed EMUs): Recommended Type: Conical tapered or hydraulic damping designs to suppress low-frequency cabin booming.
- Heavy Cargo and Floating Tracks: Recommended Type: Laminated chevron structures utilizing multi-layer metal-rubber composites for ultra-high load capacity.
Conclusion
Different high-damping Rubber Bushing Types provide distinct vibration isolation and noise reduction effects in rail transit networks. Selecting matched components with professional formulas drastically cuts track wear, reduces traffic noise pollution, and lowers long-term fleet maintenance costs.
Ginotek’s Rubber Bushing Types engineering team provides targeted material selection and structural optimization tailored to your Rubber Bushing Types train models, operating speeds, and vibration test data. Contact us today for technical data sheets and custom bulk quotations.
